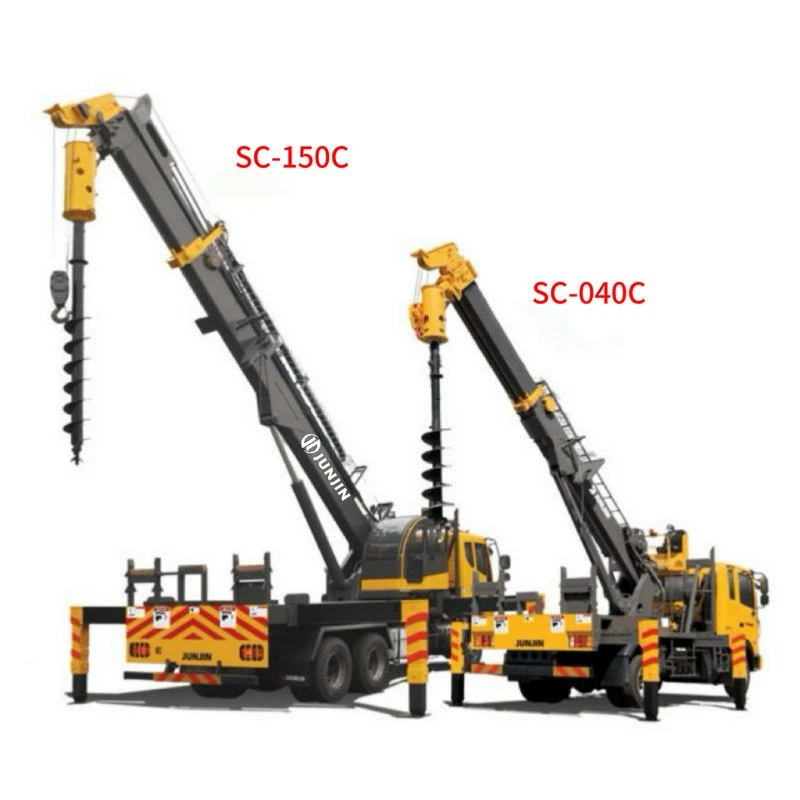

Truck Mounted Arger Crane

Our Truck Mounted Auger Crane (SC series) mounts drilling and lifting assemblies onto standard commercial truck frames. Two variants are available: SC-040C fitted on a 5-ton chassis and SC-150C built on a 16-ton chassis. This all-in-one unit handles spiral bore drilling and mobile hoisting, widely used for power pole footings, building foundation piling and tree excavation for municipal landscaping projects.

1.Dual-purpose drilling and lifting functionality

One machine delivers two core jobs: spiral soil boring and material hoisting. Contractors finish piling work and light lifting tasks with a single piece of equipment to cut fleet costs.

2.Two size models for different project scales

• SC-040C: Max bore size 450mm, drill depth up to 4.5m. Compact build ideal for small power line jobs and landscape tree transplanting.
• SC-150C: Maximum 380mm bore diameter with 15m deep drilling capacity. Higher torque output supports heavy-duty deep foundation piling.

3.Flexible multi-section lifting boom

4-section boom (SC-040C) & 3-section boom (SC-150C) with adjustable luffing angle, large working radius and height for complicated site layout.

4.Stable hydraulic support & rotary system

H-type outriggers and full-circle continuous rotary platform guarantee stable operation on uneven ground; matched gear/piston hydraulic pump ensures steady drilling & lifting performance.

5.Convenient highway transit

Installed on standard truck chassis, no special transport permit needed for road transfer between construction sites.
