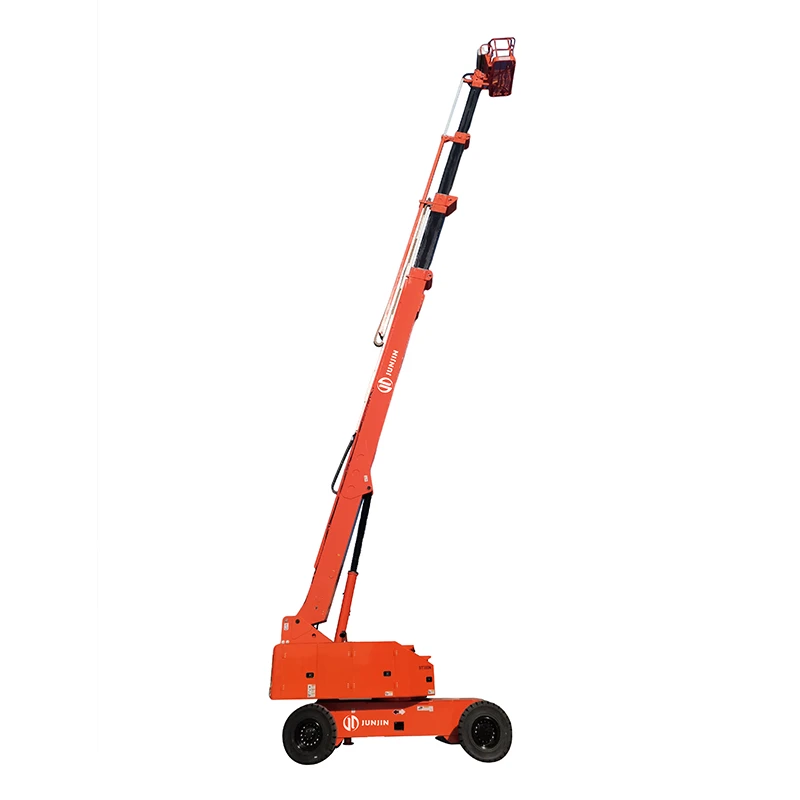

Used Telescopic Boom Lift
Our Used Telescopic Boom Lifts cover working heights from 20 m to 43 m across the full ST220C to STJ430N series. Every machine keeps its original core setup: uninterrupted 360° boom rotation with adjustable luffing angles, matched with 90° left-right platform swing and a standard 250 kg load capacity to hold two operators plus job-site tools.
Dual travel speeds are fitted as standard: 2–4 km/h for site transit and 1 km/h for lifting work. Heavy-duty off-road tyres deliver 25%–30% gradeability for smooth travel over rough construction yards and dock terrain. Models from 20 m to 32 m are powered by reliable Ankang diesel engines, while high-reach 34–43m versions use Cummins B3.9 power units. Large 170 L–230 L fuel tanks enable full-day continuous operation after full overhaul.
Each unit comes with a full set of active safety features: overload protection, tilt alarms and an emergency lowering system. With refurbished chassis and hydraulic components delivering steady reliable performance, these lifts serve as a cost-effective alternative to brand-new machines for factory upkeep, municipal bridge works and shipyard construction projects.
Specifications
Group 1
|
Model No. |
ST200C |
ST220C |
STJ220C |
ST260C |
ST280N |
STJ280N |
ST320N |
|
|
Working Height |
20m |
22m |
22m |
26m |
28m |
28m |
32m |
|
|
Dimensions |
Length(mm) |
9150 |
10300 |
10750 |
11440 |
10300 |
10750 |
12000 |
|
Width(mm) |
2440 |
2440 |
2440 |
2440 |
2440 |
2440(3140) |
2600(3500) |
|
|
Height(mm) |
2630 |
2630 |
2630 |
2770 |
2910 |
2910 |
2920 |
|
|
Wheelbase (mm) |
2500 |
2500 |
2500 |
3100 |
3100 |
3100 |
3600 |
|
|
Ground Clearance (mm) |
350 |
350 |
350 |
300 |
300 |
300 |
290 |
|
|
Total Weight(kg) |
13000 |
14500 |
14500 |
15500 |
18100 |
18500 |
20500 |
|
|
Main Boom |
Luffing Angle |
-15-75° |
-15-75° |
-15-75° |
-15-75° |
-15-75° |
-15-75° |
-12-70° |
|
Slewing Angle |
360° continuous |
360° continuous |
360° continuous |
360° continuous |
360° continuous |
360° continuous |
360° continuous |
|
|
Travel Performance |
Travel Speed |
2-4km/h |
2-4km/h |
2-4km/h |
2-4km/h |
2-4km/h |
2-4km/h |
2-4km/h |
|
Working Speed |
1km/h |
1km/h |
1km/h |
1km/h |
1km/h |
1km/h |
1km/h |
|
|
Gradeability |
30% |
30% |
30% |
30% |
30% |
30% |
25% |
|
|
Tire Size |
10.00-20 |
10.00-20 |
10.00-20 |
12.00-20 |
12.00-20 |
12.00-20 |
12.00-20 |
|
|
Work Platform |
Rated Load Capacity |
250 |
250 |
250 |
250 |
250 |
250 |
250 |
|
Max Platform Height |
18m |
20m |
20.3m |
24.3m |
26.3m |
26.2m |
30.3m |
|
|
Rotation Angle |
L/R90° |
L/R90° |
L/R90° |
L/R90° |
L/R90° |
L/R90° |
L/R90° |
|
|
Dimensions (L×W×H) |
1500x800x1000 |
1500x800x1000 |
1500x800x1000m |
1500x800x1000 |
1500x800x1000 |
1500x800x1000 |
1500x800x1000 |
|
|
Engine |
Brand |
AnkangHFC4DA1 |
AnkangHFC4DA1 |
AnkangHFC4DA1 |
AnkangHFC4DA1 |
AnkangHFC4DA1 |
AnkangHFC4DA1 |
CumminsB3.9 |
|
Max Power |
36.8kw/2250r |
36.8kw/2250r |
36.8kw/2250r |
36.8kw/2250r |
36.8kw/2250r |
36.8kw/2250r |
59kw/2500r |
|
|
Fuel Tank Capacity |
170L |
170L |
170L |
200L |
200L |
200L |
230L |
|
Group 2
|
Model |
ST340N |
STJ340N |
ST380N |
STJ400N |
ST410N |
STJ430N |
|
|
Working Height |
34m |
34m |
38m |
40m |
41m |
43m |
|
|
Dimensions |
Length(mm) |
12600 |
13500 |
13800 |
15800 |
15800 |
15860 |
|
Width(mm) |
2600(3500) |
2600(3500) |
2600(3500) |
2600(3500) |
2600(3500) |
2600(3800) |
|
|
Height(mm) |
2920 |
2920 |
2920 |
3200 |
2920 |
3032 |
|
|
Wheelbase (mm) |
3600 |
3600 |
3600 |
3600 |
3600 |
3800 |
|
|
Ground Clearance (mm) |
290 |
290 |
290 |
290 |
290 |
250 |
|
|
Total Weight(kg) |
20700 |
21200 |
22500 |
22000 |
22500 |
23000 |
|
|
Main Boom |
Luffing Angle |
-12-70° |
-12-70° |
-11-70° |
-11-70° |
0-70° |
-2-75° |
|
Slewing Angle |
360° continuous |
360° continuous |
360° continuous |
360° continuous |
360° continuous |
360° continuous |
|
|
Travel Performance |
Travel Speed |
2-4km/h |
2-4km/h |
2-4km/h |
2-4km/h |
2-4km/h |
2-4km/h |
|
Working Speed |
1km/h |
1km/h |
1km/h |
1km/h |
1km/h |
1km/h |
|
|
Gradeability |
25% |
25% |
25% |
25% |
25% |
25% |
|
|
Tire Size |
12.00-20 |
12.00-20 |
12.00-20 |
12.00-20 |
12.00-20 |
445/55-25 |
|
|
Work Platform |
Rated Load Capacity |
250 |
250 |
250 |
250 |
250 |
250 |
|
Max Platform Height |
32.3m |
32.3m |
36.3m |
38.3m |
36.3m |
41.3m |
|
|
Rotation Angle |
L/R90° |
L/R90° |
L/R90° |
L/R90° |
L/R90° |
L/R90° |
|
|
Dimensions (L×W×H) |
1500x800x1000 |
1500x800x1000 |
1500x800x1000 |
1500x800x1000 |
1500x800x1000 |
1500x800x1000 |
|
|
Engine |
Brand |
CumminsB3.9 |
CumminsB3.9 |
CumminsB3.9 |
CumminsB3.9 |
CumminsB3.9 |
CumminsB3.9 |
|
Max Power |
59kw/2500r |
59kw/2500r |
59kw/2500r |
59kw/2500r |
59kw/2500r |
59kw/2500r |
|
|
Fuel Tank Capacity |
230L |
230L |
230L |
230L |
230L |
230L |
|
