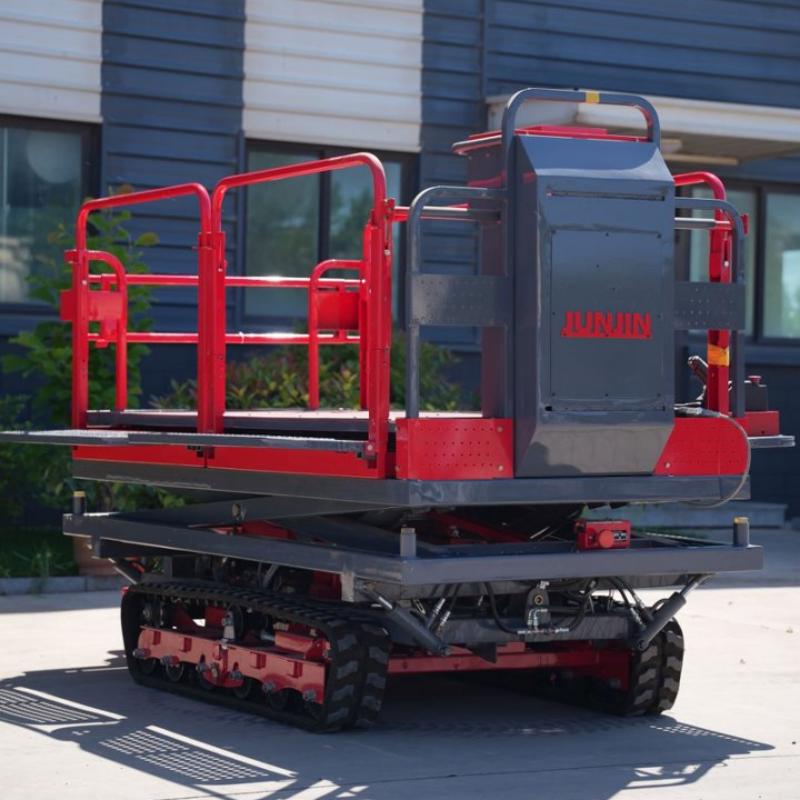

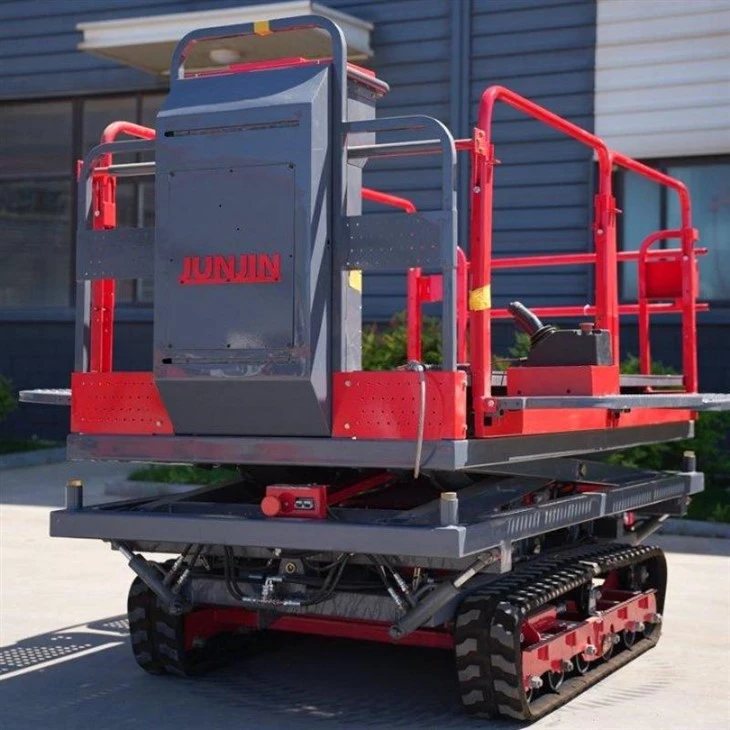

Agricultural Orchard Lift

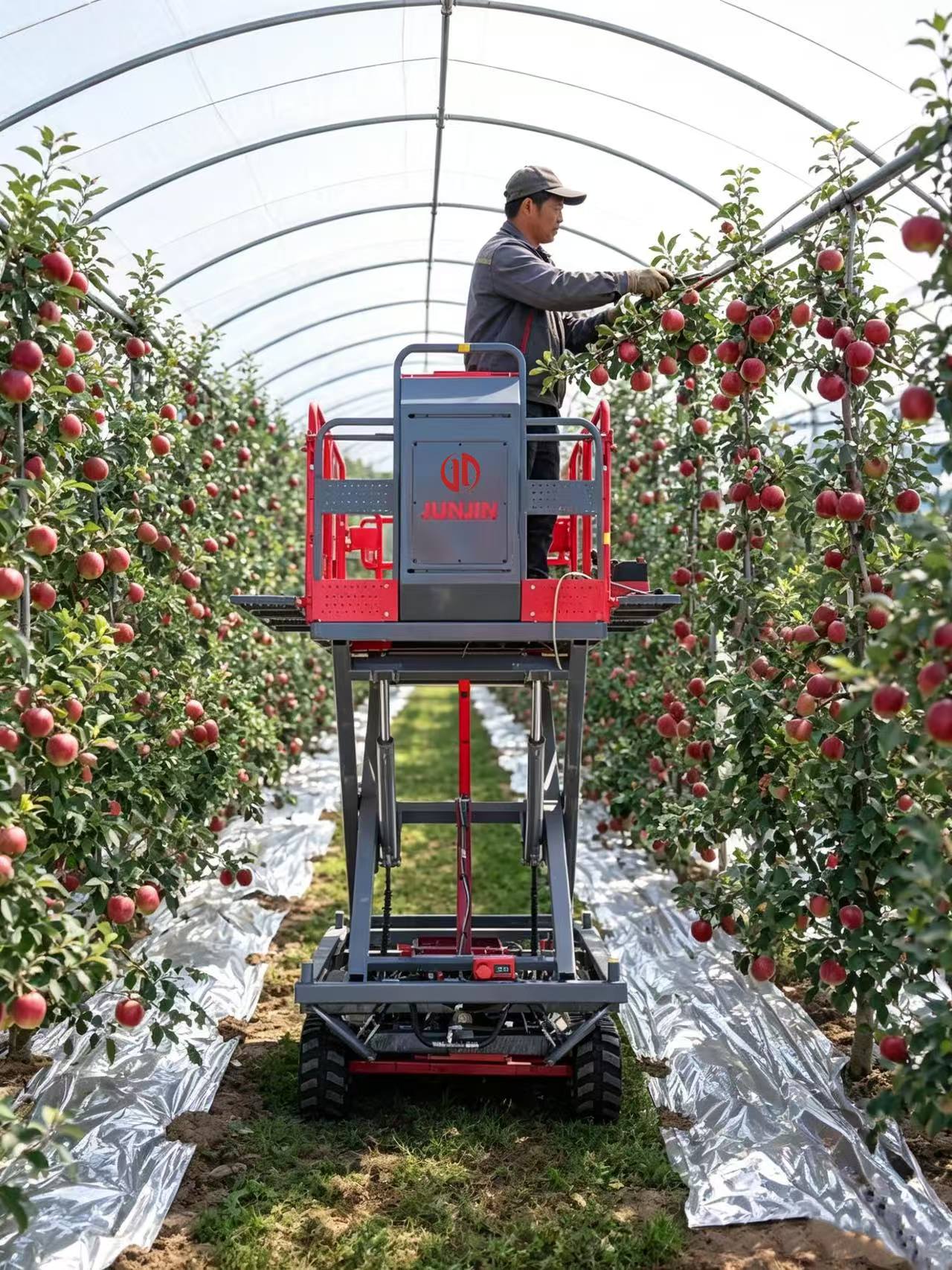

Weighing 1150kg with 250kg safe load limit, its working platform supports manual stretching to enlarge operation space. Flexible body structure adapts to rugged ground conditions, including muddy plots, undulating terrain and closely spaced fruit trees. This Agricultural orchard lift is widely applied for apple, cherry and citrus plantations, especially well-suited for hilly orchards with complicated ground conditions.
Core Advantages
1.Wide rubber crawler chassis distributes machine pressure evenly. It delivers outstanding off-road capability when travelling over soft soil and farm ditches, effectively lowering the risk of getting stuck on damp ground.
2.Scissor-type hydraulic lifting structure keeps stable status during height adjustment. It creates secure working conditions when staff carry out fruit collection and branch trimming at height.
3.Pull-out extended platform expands operation area, enabling two workers to operate simultaneously without mutual interference.
4.Compact overall outer size makes travel flexible. The machine can shuttle through narrow tree intervals without scratching tree trunks or branches.
5.Joystick-based electric control system brings simple operation experience. Pure electric power output produces no exhaust gas, meeting environmental requirements for farm work.
Specification
|
Model |
STN-7500 |
||
|
Item |
Content |
||
|
Machine Type |
Agricultural Aerial Work Platform |
||
|
Model No. |
STN-7500 |
||
|
Specification & Type |
Self-propelled Crawler Type |
||
|
Overall Dimension(LxWxH, mm) |
1330x2850x1900 |
||
|
Total Weight (kg) |
1150 |
||
|
Drive & Travel |
Travel Mode |
Electric Motor Driven Crawler |
|
|
Crawler Spec.(WidthxPitchxLink, mm) |
200 x 72 x 50 |
||
|
Driving Motor Parameter |
AC 48V 2.0 KW |
||
|
Steering Mode |
Joystick Control |
||
|
Travel Speed(km/h) |
Forward |
0- 3.0 km/h |
|
|
Reverse |
0- 3.0 km/h |
||
|
Hydraulic Configuration |
Hydraulic Power Unit, Max. Working Pressure:15MPa |
||
|
Max. Rated Load (kg) |
250 |
||
|
Working Platform |
Platform Size (mm) |
1220x2500 |
|
|
Extended Platform Size(mm) |
1900 x 2500 |
||
|
Min. Platform Height (mm) |
760 |
||
|
Max. Platform Height (mm) |
2615 |
||
Frequently Asked Questions
Q1: Does this device work for densely planted fruit orchards?
A: This Agricultural orchard lift is developed for hilly orchards with compact planting layout. It fits multiple fruit varieties such as apples, cherries and citrus, and can run normally on muddy ground and gentle slope land.
Q2: What about its actual loading performance?
A: The rated load reaches 250kg, which can hold two operators plus picking baskets. After pulling out and locking the extended platform, the full load capacity can still be guaranteed.
Q3: What height range can it meet for fruit-tree jobs?
A: The maximum platform height is 2615mm and the practical working height is roughly 4 meters. Customers can apply for customized higher guardrail solutions according to tree height.
Q4: Will it sink while moving on wet slope land?
A: Equipped with broad rubber tracks, the machine features low ground pressure. It can work stably on gentle slopes within 12 degrees under normal-use conditions.
Important Notes
Do not exceed the rated load during operation; personnel shall stand within the platform guardrail range while working at height.
Working slope shall not exceed 12°, avoid long‑time stay on sloped ground.
Please stop operation immediately once low‑power alarm triggers, do not keep over‑discharging the battery.
Non‑professional persons are not allowed to disassemble hydraulic parts and motor assemblies at will, or the warranty will become invalid.
