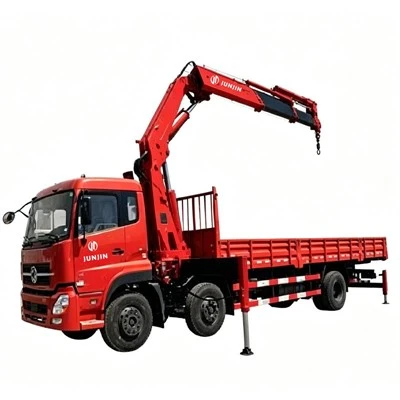

Truck Mounted Crane

Applications

  • Construction lifting and material positioning.
  • Loading, unloading and logistics handling.
  • Lifting work in areas with limited installation space.



Model Specifications

Our truck mounted crane range includes the SYS-10ZIV and SYS-12ZIV models, with maximum lifting capacities of 10,000 kg and 12,000 kg respectively. The specifications below provide a direct comparison of their lifting capacity, working range, operating parameters and crane weight.

Item Unit SYS-10ZIV SYS-12ZIV
Max. Lifting Capacity Kg 10,000 12,000
Rated Load Moment KN·m 200 300
Max. Working Radius M 12.2 12.05
Max. Lifting Height (From Mounting Surface) M 14.0 14.0
Luffing Angle Range ° -50~75 -50~75
Slewing Angle Range ° Continuous ±360° Continuous ±360°
Rated Working Pressure MPa 30 30
Crane Weight (Excl. Oil Tank, Outriggers & Upper Fittings) Kg Approx. 3,450 Approx. 4,580
Hydraulic Pump Displacement Ml/r 50 63

Crane weight excludes the oil tank, outriggers and upper fittings.

Supply and Technical Support

We provide technical consultation, equipment selection support, parameter matching and customized design services. Our service arrangements also include production progress tracking, quality inspection management, delivery coordination and equipment operation training.

After delivery, we provide technical support, maintenance guidance, original spare parts supply and remote fault diagnosis.

Request a Quote

Send us your required lifting capacity, working radius, preferred model or reference specifications. You can also provide available truck information, product images and estimated order quantity. We will review your requirements and discuss the relevant truck mounted crane model with you.

As one of the most reliable truck mounted crane manufacturers and suppliers in China, we're featured by high quality customized products. Please rest assured to buy discount truck mounted crane made in China here from our factory. Contact us for pricelist and quotation. 12T truck mounted crane, Folding boom truck mounted crane, truck mounted crane
