Used Boom Lift

Refurbishment and Equipment Condition

Our refurbished used articulated boom lifts are offered as refurbished equipment. The product information identifies imported components for key hydraulic and electrical systems.

The listed equipment also includes safety interlock logic and an active safety protection system. The stated application environments include shipyard maintenance, shipyard renovation, factory maintenance, and municipal renovation, including environments involving moisture, dust, and corrosive conditions.

Individual machine details, including manufacturing year, operating hours, maintenance history, battery condition, and inspection records, should be checked against the specific unit being quoted.

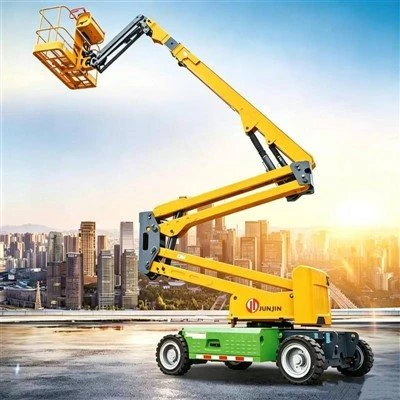

Used Articulated Boom Lift Models

We offer refurbished used articulated boom lifts in three models: SP150A, SP160ACK, and SP200ACK, with working heights ranging from 15 m to 20.6 m. The range includes different platform capacities, horizontal outreach distances, and machine dimensions.

Model Working Height Platform Height Platform Capacity Horizontal Outreach Machine Weight
SP150A 15 m 13.2 m 250 kg Not specified 7,400 kg
SP160ACK 16.5 m 14.5 m 256 kg (unrestricted) / 350 kg (restricted) 8.6 m 7,400 kg
SP200ACK 20.6 m 18.6 m 256 kg (unrestricted) / 350 kg (restricted) 11.98 m 9,100 kg

Dimensions and Mobility

The three models have different overall dimensions. The SP160ACK and SP200ACK also have listed turning and travel specifications.

Specification SP150A SP160ACK SP200ACK
Overall Dimensions (L × W × H) 6,800 × 2,100 × 2,100 mm 6,785 × 2,320 × 2,350 mm 8,490 × 2,490 × 2,380 mm
Platform Dimensions Not specified 1,830 × 760 × 1,150 mm 1,830 × 760 × 1,150 mm
Minimum Outside Turning Radius Not specified 4,700 mm 5,000 mm
Minimum Inside Turning Radius Not specified 3,200 mm 3,500 mm
Travel Speed (Stowed) Not specified 4.8 km/h 4.8 km/h
Travel Speed (Elevated or Extended) Not specified 0.6 km/h 0.6 km/h
Gradeability Not specified 30% uphill / 25% downhill (counterweight conditions) 30% uphill / 45% downhill (counterweight conditions)

Power System and Standard Configuration

The SP160ACK and SP200ACK use a 48V DC battery system with a capacity of 390–420 Ah.

Component Specification
Battery Voltage 48V DC
Battery Capacity 390–420 Ah
Main Power Unit 12 kW / 32V AC
Auxiliary Power Unit 2.3 kW / 12V DC
Drive Motor 3.3 kW / 32V AC

Standard configurations listed for the equipment include:

  • Automatic platform leveling
  • Emergency power unit
  • Active safety protection system
  • Harsh-environment protection kit
  • Thumb-operated joystick steering
  • Four-wheel drive and axle balancing (SP200ACK)

The equipment has control stations at both the platform and ground level. Operators can control boom lifting, luffing, rotation, and chassis travel. The listed multi-function operation allows several movements to be performed simultaneously.

Rotation and Optional Equipment

Configuration SP160ACK SP200ACK
Turntable Rotation 355° 360° continuous
Platform Rotation 160° 160°

Optional equipment includes:

  • Tool tray
  • Work light assembly

Request a Quote

Send us your preferred model or required working height, platform capacity, and purchase quantity. You can also share equipment reference images or your project specifications.

We will use this information to identify the corresponding used articulated boom lift options and prepare a quotation.
