Agricultural Crawler Telescopic Boom Lift

Farmers often struggle with unstable ladders when picking tall fruit trees or trimming branches in muddy, sloped orchards. Our Agricultural Crawler Telescopic Boom Lift solves this pain point with an extendable telescopic platform that fits different tree row spacings perfectly. Running entirely on electric power, it cuts down exhaust fumes to fit today's low-carbon farm management needs.

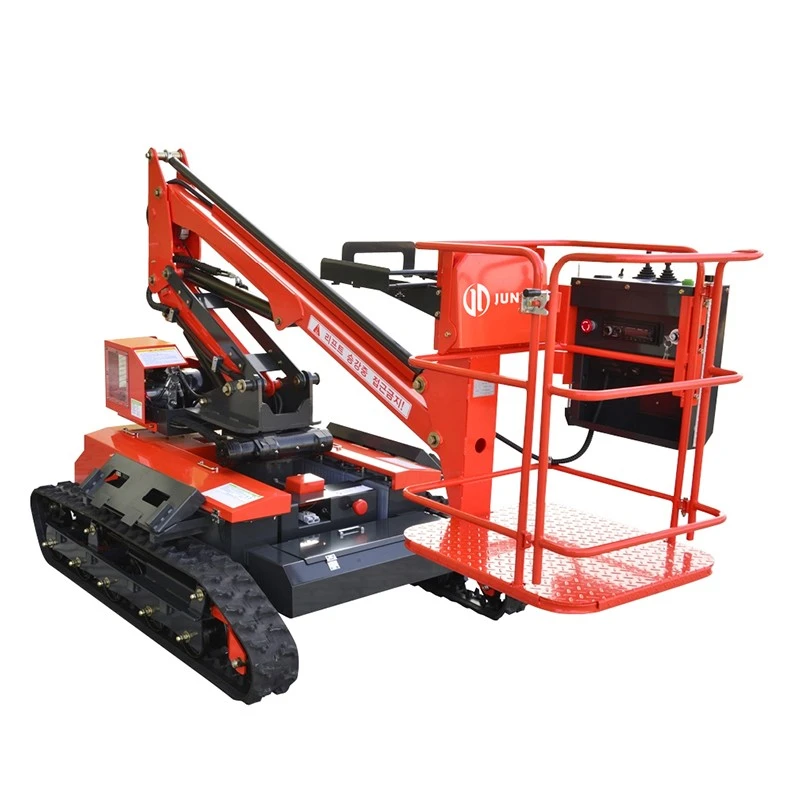

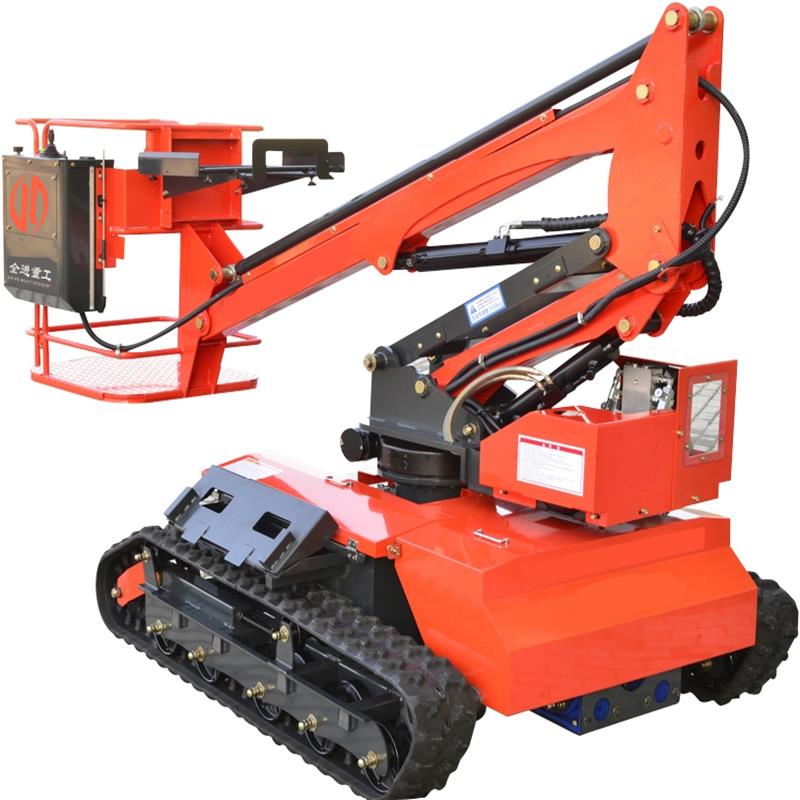

This STN6000 crawler lifting machine is built for daily orchard upkeep. The stretchable platform adjusts to match narrow and wide tree rows, ideal for seasonal picking and regular pruning tasks. Electric drive keeps running costs low with zero emissions, matching the environmental rules many modern farms follow.

It uses a self-propelled rubber crawler chassis. Overall machine measurements are 2860×1380×1480 mm, and total weight sits at 950 kg. The 200×72×50 mm rubber tracks are powered by a 48V AC 1.5kW motor. Operators control forward and reverse speed between 0 and 2.4 km/h via simple joysticks. The track design grips soft mud and gentle slopes without slipping. A hydraulic unit working at up to 15 MPa delivers smooth, steady lifting movement for the work platform.

The platform itself measures 635×612 mm with a safe 100 kg load limit. Height adjusts from a low 390 mm base up to a maximum 3150 mm lift height. Its compact slim frame moves easily through dense tree rows and inside covered greenhouses. Local growers commonly use it for fruit harvest, seasonal tree trimming, and young seedling care work year-round.
