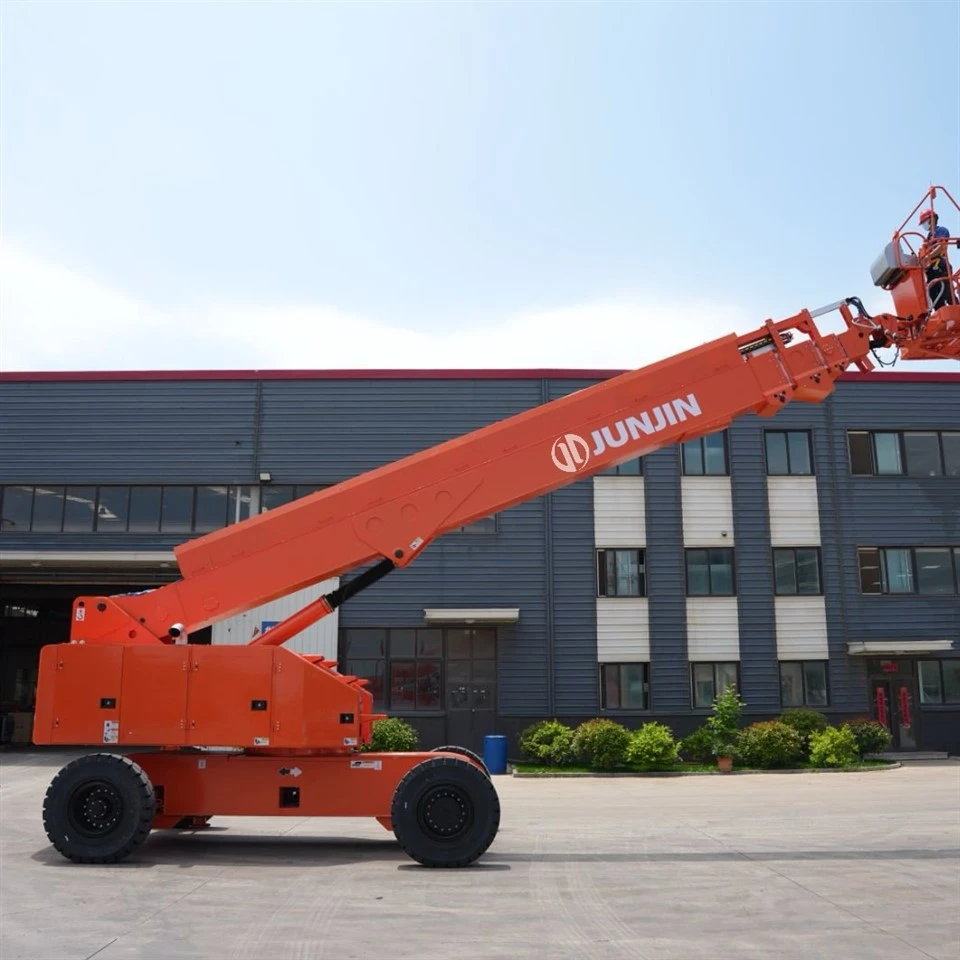

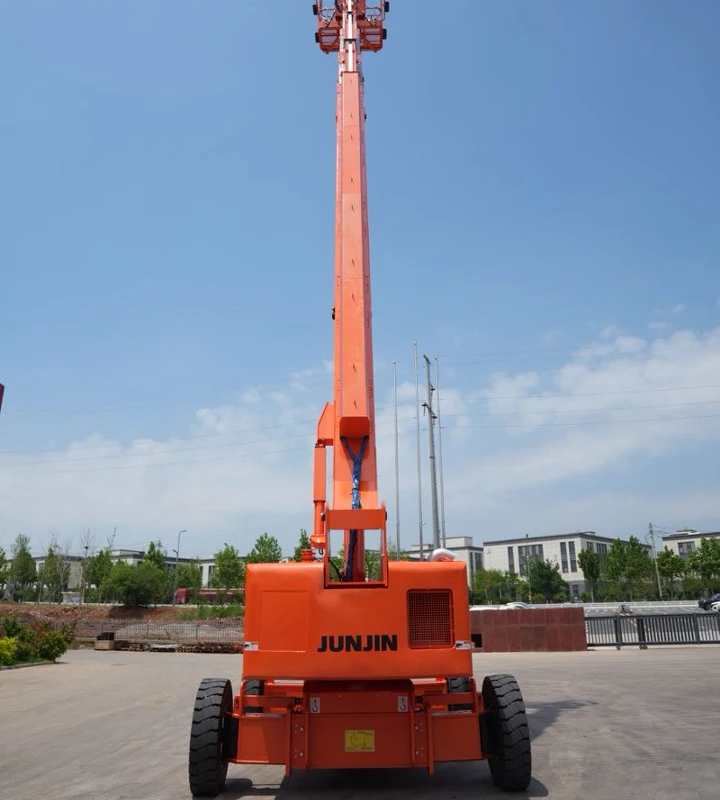

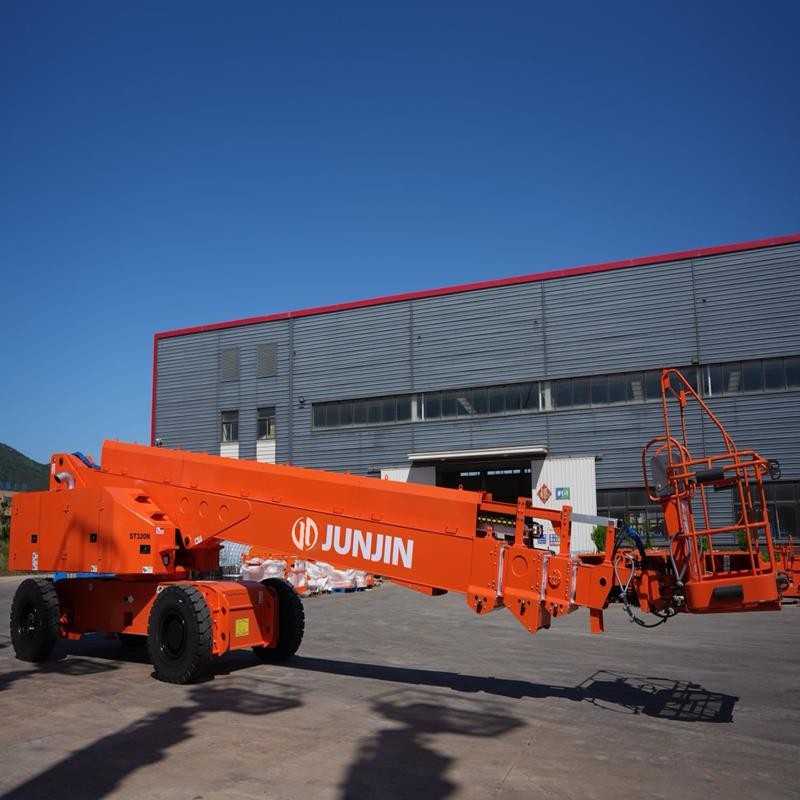

125ft Boom Lift
Model: ST380N
This 125ft boom lift, also known as a telescopic man lift , is purpose-built for shipbuilding & repair and heavy-duty industrial scenarios. Boasting a 38 m working height and 250 kg rated platform capacity, this 125ft boom lift delivers smooth movement, reliable sealing performance and high-level safety. It serves as an ideal solution for complex working conditions such as large-scale vessel construction and maintenance.
Key Features
Ultra-smooth boom movements with excellent operational stability.
Full solid rubber tires for adaptability to diverse rough terrain.
Major core components adopt globally renowned brand parts.
Chassis and boom sections are constructed from high-grade steel for robust build quality.

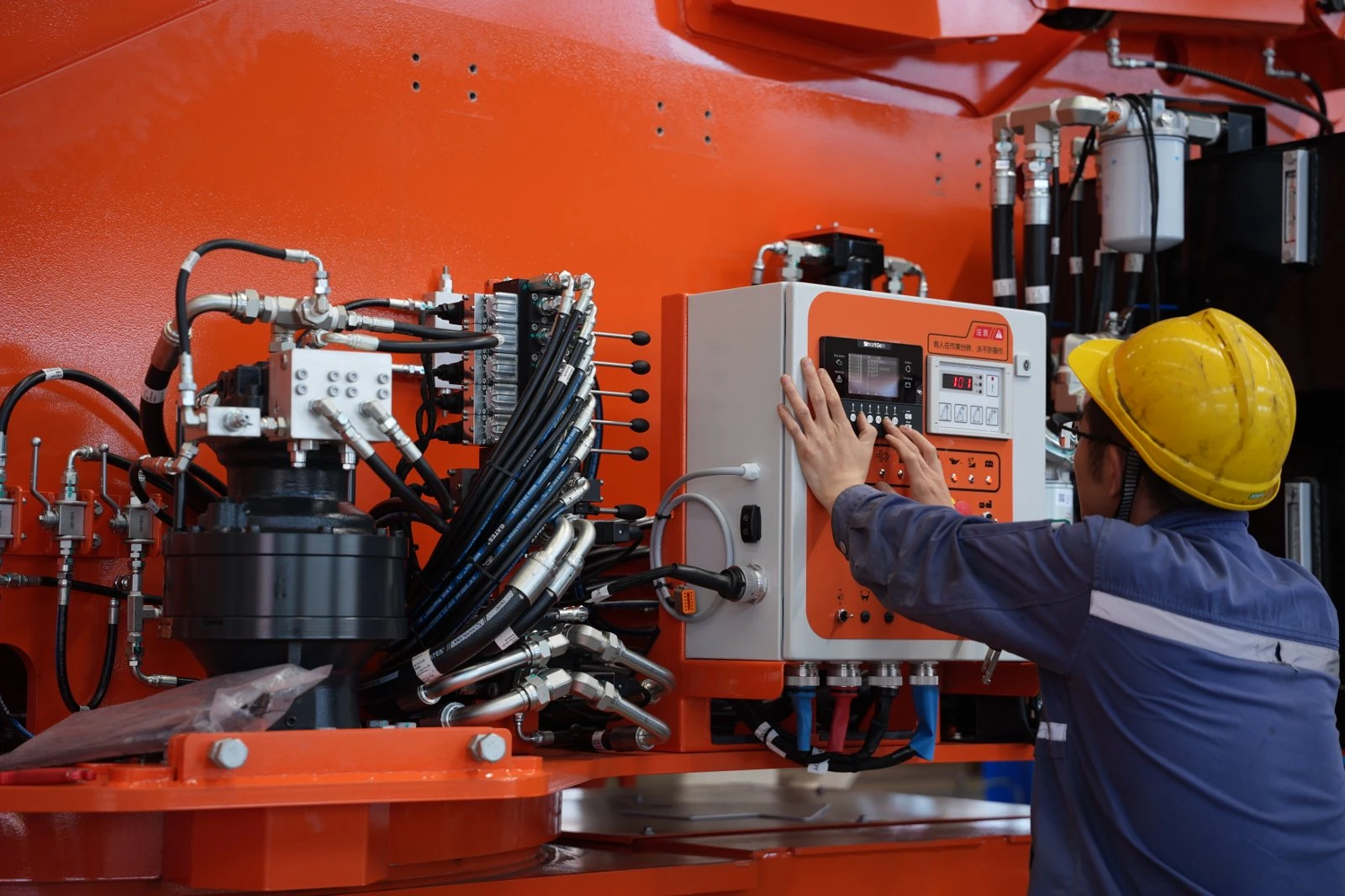

Well-optimized component layout facilitates convenient service and routine maintenance.
Typical Applications

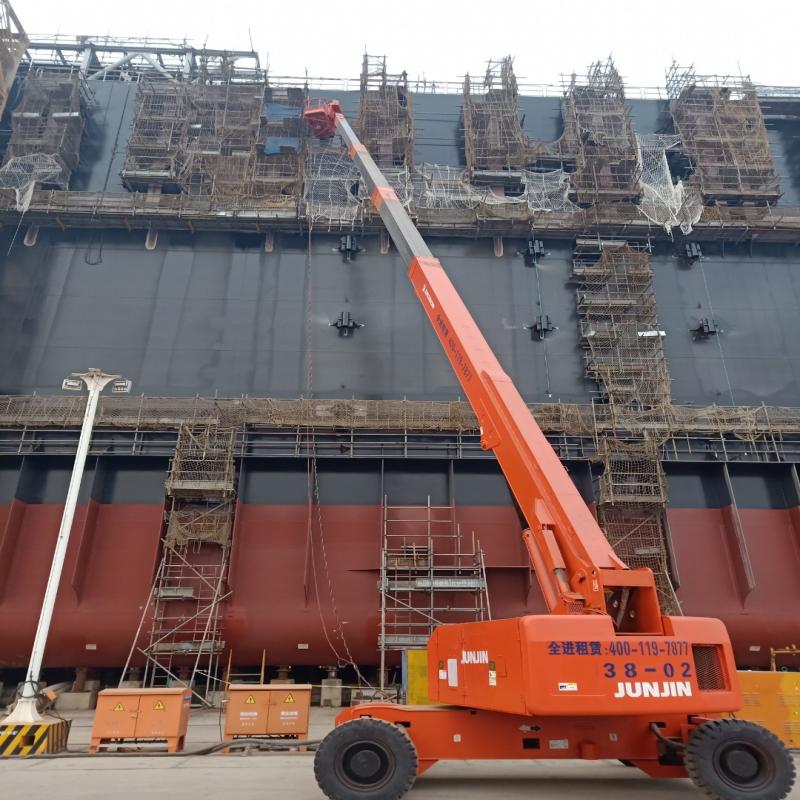

Outfitting operations for ship hull blocks.
Hull-section welding and assembly work.
High-pressure water washing and sandblasting on vessel structures.
Installation and maintenance of large-size steel structures.
Other industrial assignments requiring great working height and horizontal outreach.
Specifications
|
Model |
ST380N |
|||
|
Working Height |
38 m |
|||
|
Maximum Outreach |
18 m |
|||
|
Platform Maximum Height |
36.3 m |
|||
|
Working Basket |
Rated Load |
250kgf |
||
|
Rotation Angle |
L/R 90° |
|||
|
Boom |
Luffing Angle |
-10°~ +75° |
||
|
Slewing Angle |
Continuous 360° |
|||
|
Travelling |
Tire |
F |
Solid |
12.00 - 20 |
|
R |
Solid |
12.00 - 20 |
||
|
Working Travel Speed |
1 km/h |
|||
|
Moving Travel Speed |
Low Speed |
2 km/h |
||
|
High Speed |
4 km/h |
|||
|
Gradeability |
30 % |
|||
|
Minimum Turning Radius |
8.16m |
|||
|
Engine |
Model |
QSB3.9(CUMMINS) |
||
|
Total Displacement |
3900 cc |
|||
|
Maximum Power |
85ps/ 2600rpm |
|||
|
r.p.m |
Max. setting |
2400 ± 50 |
||
|
Min. setting |
1500 ± 50 |
|||
|
Maximum Torque |
27.5 kg.m / 1800rpm |
|||
|
Battery Voltage |
DC 24V |
|||
|
Fuel & Tank Capacity |
250 L |
|||
|
Hydraulic Device |
Hydraulic Pump |
Type |
Piston Pump+Gear Pump |
|
|
Overall Dimension |
Overall Length |
14098mm |
||
|
Overall Height |
2955mm |
|||
|
Overall Width |
Retract 2600mm Extend 3400mm |
|||
|
Wheelbase |
3600mm |
|||
|
Track Width |
2228mm |
|||
|
Minimum Ground Clearance |
250mm |
|||
|
Hose Track |
Mounted on boom |
|||
|
Basket (W x L x H) |
800 x 1500 x 1100 |
|||
|
Total Weight |
Approx.23 ton |
|||
|
Color |
Orange |
|||
|
* Parameters are subject to change without prior notice for product improvement. |
||||

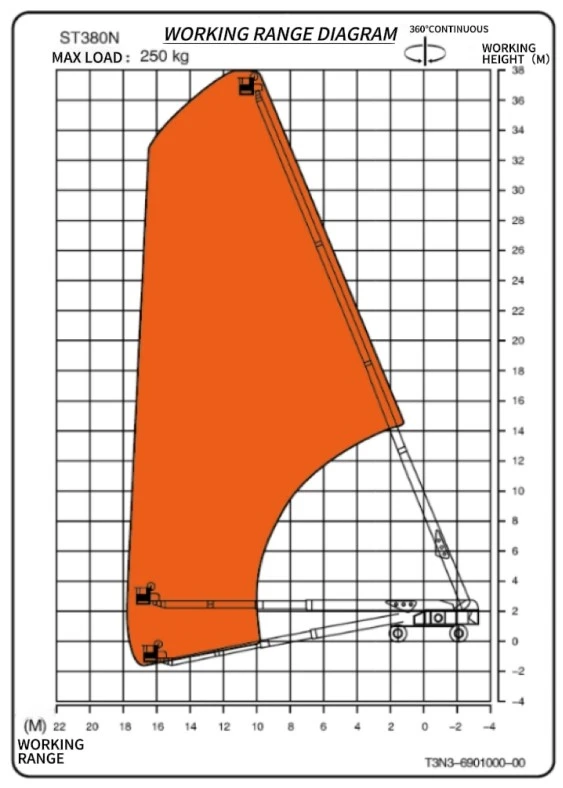

Working Range Diagram

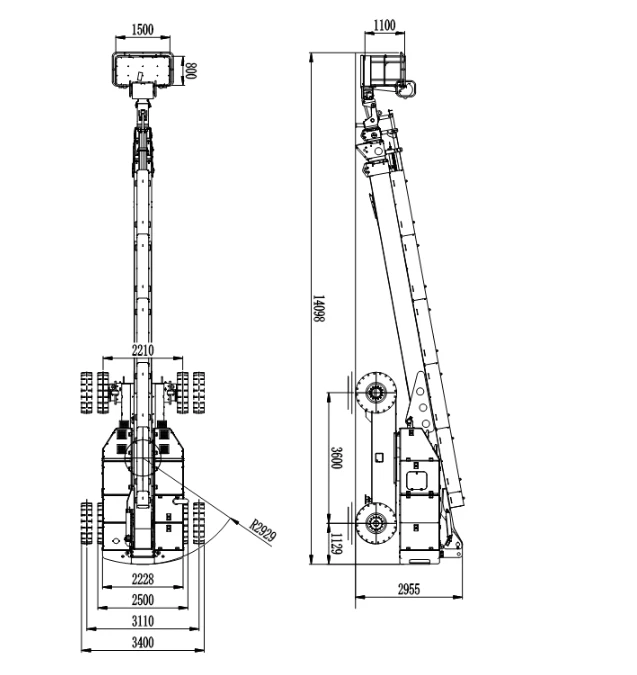

Product Dimension Drawing
