105ft Shipyard Boom Lift

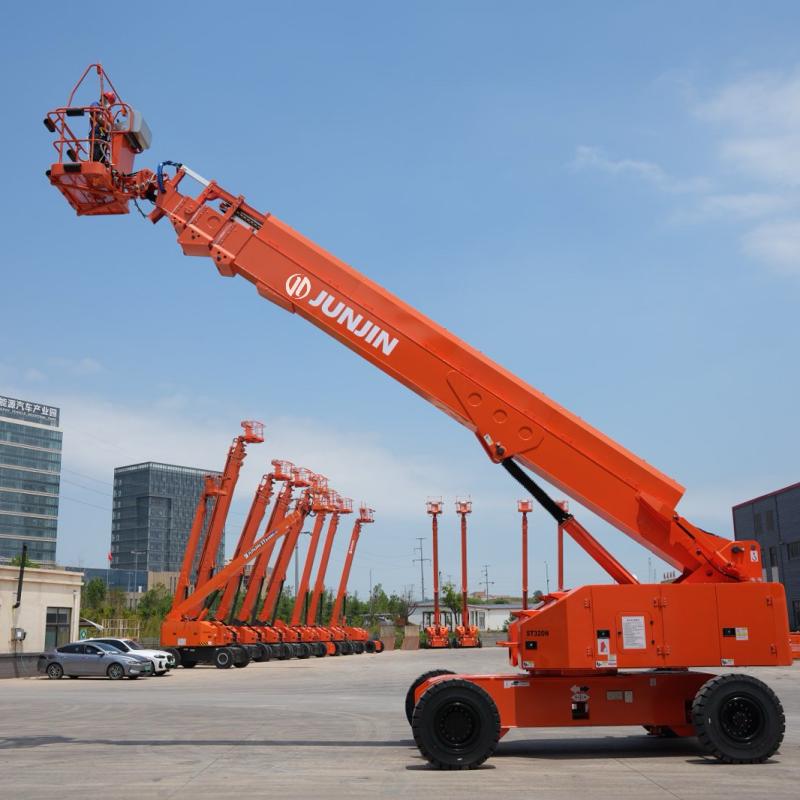

Model ST320N is a heavy-duty telescopic boom lift engineered for shipyard, dock and heavy-industry working conditions. Max working height reaches 32m(105ft). It is widely used for vessel painting, blasting, hull maintenance, dock construction and large-scale steel-structure projects. With stable chassis, continuous 360° rotation and strong gradeability, this boom lift delivers reliable high-altitude operation for harsh marine-site environments.
Parameter
|
Model No. |
ST320N |
|
|
Working Height |
32m |
|
|
Dimensions |
Length(mm) |
12000 |
|
Width(mm) |
2600(3500) |
|
|
Height(mm) |
2920 |
|
|
Wheelbase (mm) |
3600 |
|
|
Ground Clearance (mm) |
290 |
|
|
Total Weight(kg) |
20500 |
|
|
Main Boom |
Luffing Angle |
-12-70° |
|
Slewing Angle |
360° continuous |
|
|
Travel Performance |
Travel Speed |
2-4km/h |
|
Working Speed |
1km/h |
|
|
Gradeability |
25% |
|
|
Tire Size |
12.00-20 |
|
|
Work Platform |
Rated Load Capacity |
250 |
|
Max Platform Height |
30.3m |
|
|
Rotation Angle |
L/R90° |
|
|
Dimensions (LxWxH) |
1500x800x1000 |
|
|
Engine |
Brand |
CumminsB3.9 |
|
Max Power |
59kw/2500r |
|
|
Fuel Tank Capacity |
230L |
|
Core Advantages & Features
Shipyard-oriented heavy-duty design Heavy-weight 20500kg chassis enhances stability for high-altitude work on uneven dock ground. Suited for ship blasting & painting working scenarios.
Large working coverage 32m full working height, 360° continuous turret rotation, boom luffing from-12° to 70°, platform ±90° rotation. Operators can reach complex hull positions flexibly.
Strong off-road performance 25% gradeability, large 12.00-20 off-road tires, 290mm ground clearance. Good adaptability for rough, uneven shipyard ground.
Reliable power system Adopt Cummins B3.9 diesel engine, stable power output 59kW. Large 230L fuel tank supports long-shift continuous site operation.
Safe loading capacity 250kg rated platform load, accommodate 2-3 operators plus hand-tools for ship repair work.
FAQ
Q1: What is the max working height of ST320N?
A: Working height 32m (105ft), platform height 30.3m.
Q2: Can this machine work on slope?
A: Max gradeability is 25%. Do not work on slopes beyond this value.
Q3: How many people can stand on the platform?
A: Rated load 250kg, for 2-3 persons with tools. Do not overload.
Q4: Is it suitable for shipyard blasting and painting work?
A: Yes, it is specially optimized for ship-repair sites. We can supply optional anti-dust & anti-corrosion upgrade upon request.
Q5: What documents can you provide for import customs clearance?
A: We can offer commercial invoice, packing list, bill of lading, CE certificate and other required export documents.
