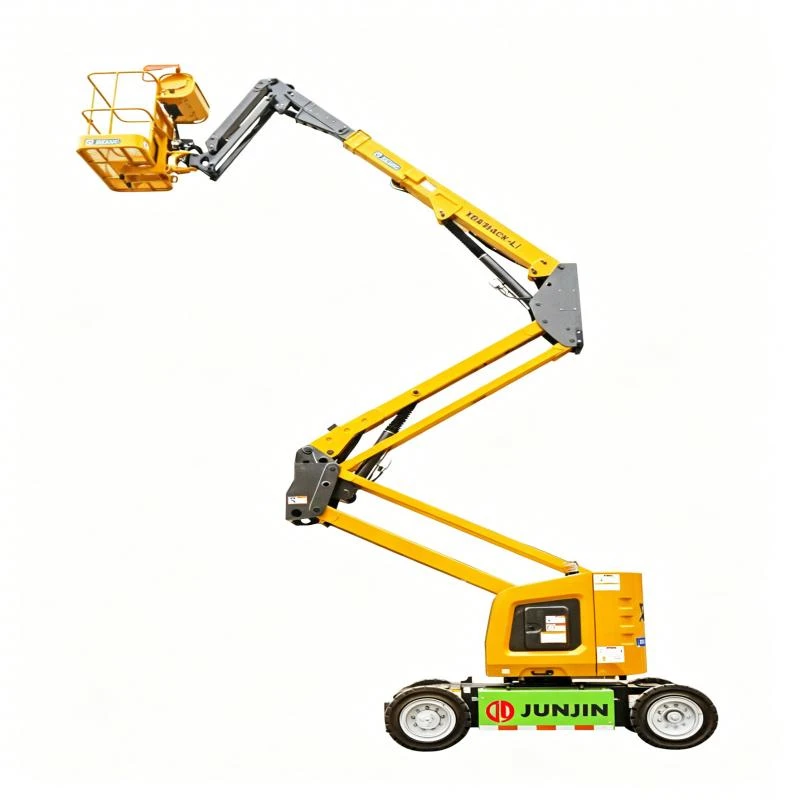

Battery Powered Articulated Boom Lift
Our Battery Powered Articulated Boom Lift features a compact structure, strong load capacity and drive performance, long-lasting battery life, and eco-friendly energy efficiency, making it suitable for both indoor and outdoor applications.
This aerial work platform covers working heights from 16.5m to 20.6m, offering advantages such as high safety and reliability, compact layout, excellent obstacle-crossing capability, precise control, and powerful drive. It is designed to better meet the requirements of operations in narrow and complex spaces.
Key Performance Advantages
- It boasts industry-leading load capacity of 256kg unrestricted or 350kg limited under equivalent height specs.
- Powerful traction supports up to 45% gradeability for easy site transfer and relocation.
- A tight turning radius brings outstanding agility, making it easy to maneuver within cramped spaces.
- Lightened boom structure paired with load-sensing hydraulics enables steady movement and lower power consumption.
- Advanced four-wheel AC electric drive plus differential steering control cuts tire abrasion and reduces motor overload risk effectively.
- Integrated AC pump and proportional control deliver safer, smoother handling experience for operators.
- Built-in pre-safety control logic ensures stable, fail-safe running status all through operation.
- As a clean electric lifting unit, this Battery Powered Articulated Boom Lift is widely favored for warehouse, mall, factory interior, building facade and noise-restricted urban job sites.
Parameters
|
Item |
Unit |
SP160ACK |
SP200ACK |
|
Dimensions |
|||
|
Overall Length (stowed) |
mm |
6785 |
8490 |
|
Overall Length (transport) |
mm |
6785 |
8490 |
|
Overall Width |
mm |
2320 |
2490 |
|
Overall Height |
mm |
2350 |
2380 |
|
Platform Dimensions |
mm |
1830x760x1150 |
1830x760x1150 |
|
Wheelbase |
mm |
2360 |
2500 |
|
Max Working Height |
mm |
16500 |
20600 |
|
Max Platform Height |
mm |
14500 |
18600 |
|
Max Horizontal Reach |
mm |
8600 |
11980 |
|
Performance |
|||
|
Rated Load Capacity |
kg |
256 (unlimited) / 350 (limited) |
256 (unlimited) / 350 (limited) |
|
Travel Speed (stowed) |
km/h |
4.8 |
4.8 |
|
Travel Speed (lifted/extended) |
km/h |
0.6 |
0.6 |
|
1st Boom Luffing Range |
° |
0 ~ 65 |
0~72 |
|
2nd Boom Luffing Range |
° |
-11 ~ 75 |
0~73 |
|
Boom Luffing Angle |
° |
/ |
/ |
|
Turntable Slewing Angle |
° |
355 |
360°continuous |
|
Tail Swing |
mm |
0 |
560 |
|
Platform Rotation Angle |
° |
160 |
160 |
|
Min. Turning Radius (outside) |
mm |
4700 |
5000 |
|
Min. Turning Radius (inside) |
mm |
3200 |
3500 |
|
Total Weight |
kg |
7400 |
9100 |
|
Gradeability (Counterweight Raised) |
% |
30 |
30 |
|
Gradeability (Counterweight Lowered) |
% |
25 |
45 |
|
Max. Side Slope |
% |
25 |
25 |
|
Power Source |
|||
|
Battery |
Ah/V |
(390-420) / 48 DC |
(390-420) / 48 DC |
|
Main Power Unit |
kW/V |
12 / 32 AC |
12 / 32 AC |
|
Auxiliary Power Unit |
kW/V |
2.3 / 12 DC |
2.3 / 12 DC |
|
Drive Motor |
kW/V |
3.3 / 32 AC |
3.3 / 32 AC |
|
Drive |
/ |
/ |
/ |
|
Standard Configuration |
1.83×0.7m platform, 12V auxiliary power, emergency power unit, auto platform leveling, 355° turntable rotation, telematics pre-wire, full active safety system, harsh environment protection package, thumb joystick steering |
1.83×0.76m dual-entry swing-gate platform, 12V auxiliary power, standard 4WD, axle balance system, emergency power unit, auto leveling, full 360° turntable rotation, telematics pre-interface, active safety system, harsh environment kit, thumb joystick steering |
|
|
Optional Configuration |
Tool tray, work light assembly |
Tool tray, work light assembly |
|
