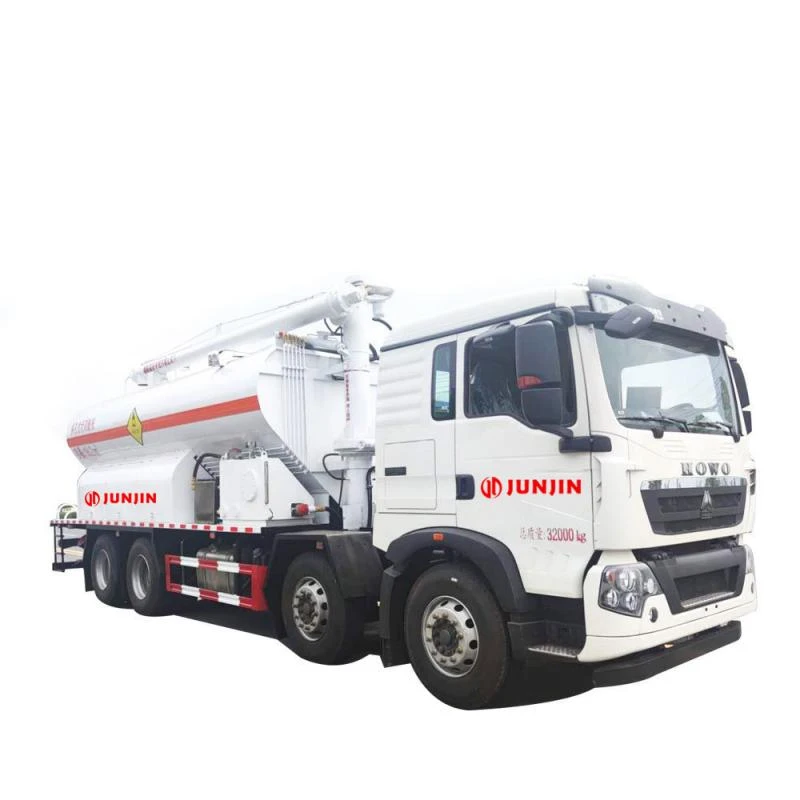

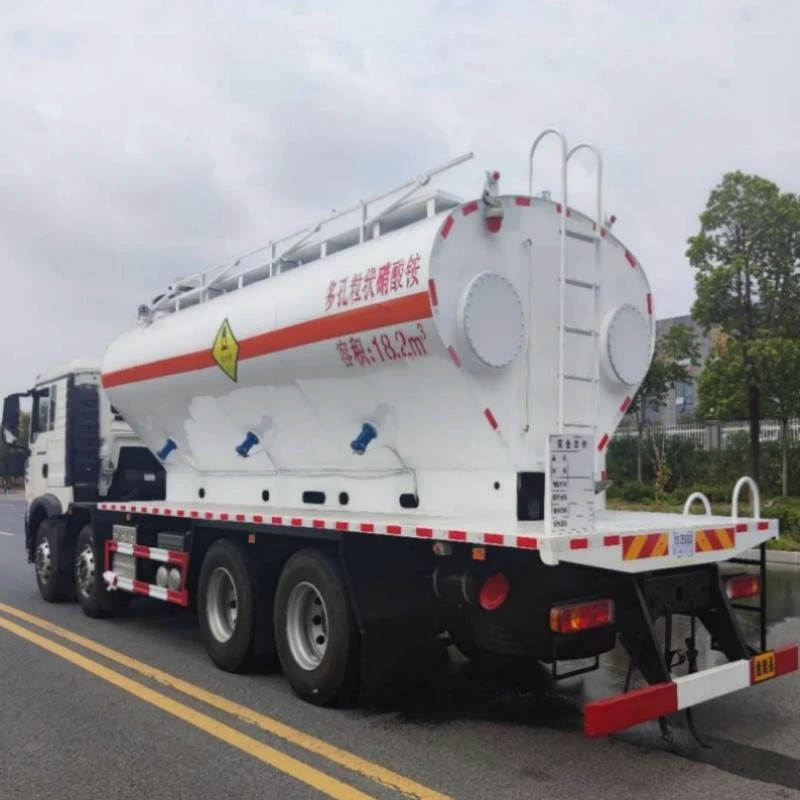

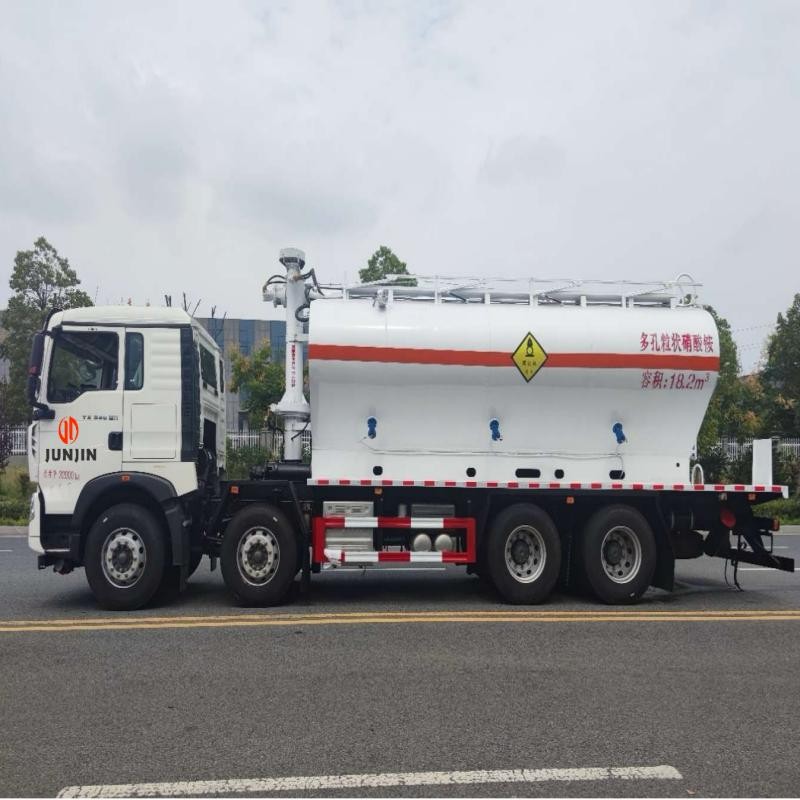

Top-mounted Screw Type ANFO Explosive Truck

Supplied by Yantai Quanrui International Trading Co., Ltd., our Top-mounted Screw Type ANFO Explosive Truck is fitted with a teardrop storage tank, supporting a 16-ton charging capacity with peak filling speed hitting 450kg per minute.

We equip this unit with stepped broken-tooth screw mixing delivery and accurate diesel injection systems, which deliver even blending for porous prilled ammonium nitrate and diesel.

Buyers can pick two screw layouts: top-mounted or side-mounted design. The whole vehicle runs on proportional valve closed-loop electric control, paired with portable handheld remote control. Stable operation and automatic data tracking let it adapt to diverse blasting sites, and every model holds official MIIT announcement certification for fully legal production and road transit.

1.Efficient & Uniform ANFO Mixing Performance
Adopts advanced broken-step progressive screw conveying technology plus precise diesel injection technology to realize full homogeneous blending of prilled ammonium nitrate and diesel fuel. Its adjustable charging speed ranges from 150kg/min up to maximum 450kg/min, with diesel mixing proportion controllable between 4.5%~6% and measurement error limited within ±2%, which effectively stabilizes finished explosive performance and cuts raw material waste.

2.Wide-range Rotatable Top-mounted Screw Boom
Fitted with front-mounted top mixing screw structure; the screw arm features a 350° full swing angle and 5m effective working radius, covering wide-area borehole positions. Operators can finish multi-point charging without frequently shifting the whole truck, greatly improving site construction efficiency.

3. Intelligent Closed-loop Electric Control System
The electrical control system is built with proportional valve regulation and closed-loop control technology, matched with handheld remote control terminal for flexible on-site remote operation. Standard factory fittings include cab air conditioner and on-board LED display screen, realizing real-time monitoring of feeding speed, oil proportion and operating status. Featuring stable running performance, high automation and informatization, the vehicle's overall technical index is in leading domestic level of China.

This ANFO mixing truck serves dry borehole blasting jobs widely: open-pit coal mines, metal ore mines, stone quarries and large infrastructure earthworks. On-site mixing and direct borehole filling remove major safety hazards brought by hauling finished ANFO over long road distances.
